Elica EMD530S2 modena series 30 Inch Under Cabinet Range Hood with 520 CFM Internal Blower, 4 Blower Speeds

Elica's Modena Under Cabinet Ventilation Hood
Modena offers a classic designer chimney appearance for under-cabinet installations. It has a striking 9" high pyramid shape and includes a 520 CFM blower for sufficient ventilating power. Also included are halogen lights with two light levels, dishwasher-safe stainless steel micro hole fil. . .

Specification

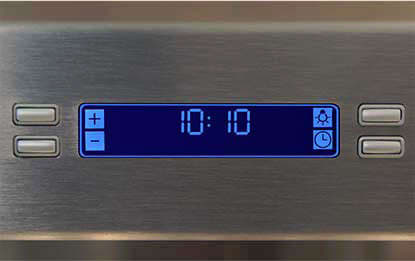

Overview Size: 30" Finish: Stainless Steel Controls: Electronic with LCD Display Filter Type: 2 Dishwasher-Safe Stainless Steel Baffles Halogen Lamps Number of Lights: 2 40-Watt Halogen Lamps, 2 Light Intensities Installation Installation Type: Ducted Installation Only Recirculating: Optional (sold separately) Duct Transition: 3.25" x 10" with Back Draft Damper (top or rear) Blower Details Blower Type: 4-Speed Internal CFM: 520 Blower Performance Speed 1: 170 CFM, 1.3 Sones Speed 2: 280 CFM, 2.7 Sones Speed 3: 430 CFM, 4.9 Sones Speed 4: 520 CFM, 7.3 Sones Dimensions and Weight Width: 30" Depth: 20" Height: 9" Weight: 41 Lbs.

Feature

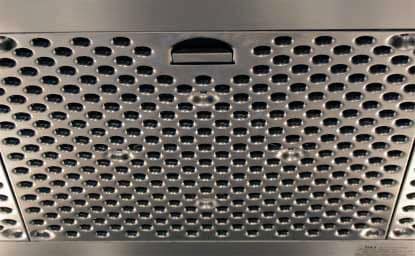

30" Width with 520 CFM 4-Speed Internal Blower The 520 CFM 4-speed internal blower (1.3 - 7.3 Sones) provides powerful, professional ventilation in a hood that will look great in any kitchen. Professional Stainless Steel Dishwasher Safe Baffle Filters Two (2) professional stainless steel baffle filters keep the air and kitchen surfaces clean and clear. Halogen Lamps with 2 Levels Two (2) 40W halogen lamps illuminate your culinary confections. Heat Guard To protect the hood and cabinetry from excessive heat, a sensor automatically adjusts blower speeds when above extreme temperatures. CFM Reduction System (CRS) CRS is an exclusive feature to Elica hoods that enables the installer to reduce the maximum blower CFM to meet local code requirements.

Manuals & Guides

Parts Prediction

Tell us what's wrong with your Elica EMD530S2 modena series 30 Inch Under Cabinet Range Hood with 520 CFM Internal Blower, 4 Blower Speeds, and we can predict what parts you need to fix it.
